Description:

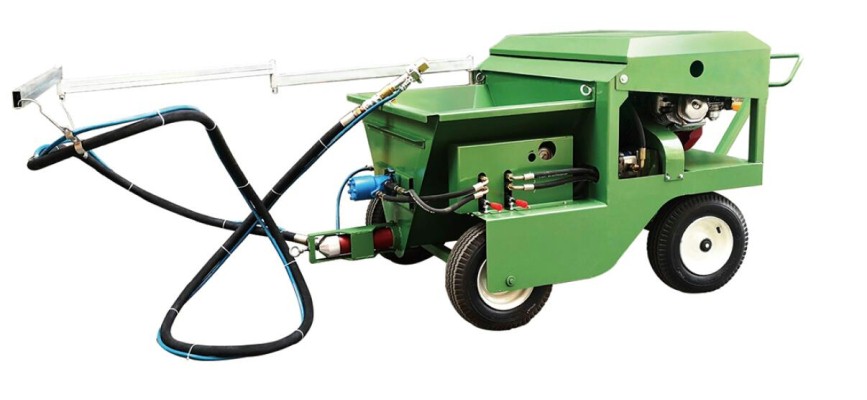

Sprayer machine ES-120 is a gasoline engine drive hydraulic device to complete each function of the machine. This equipment is used for spraying the surface of synthetic running/jogging track and sports field. The machine Hopper has two agitation functions which makes the spraying slurry mix more evenly. Rotary nozzle bracket, can be arbitrary steering, reduce the intensity of the spraying personnel holding nozzle, easy operation in the field spraying. Its performance to meet the surface of the sports ground spraying requirements, to achieve the ideal spraying effect.

Parameters:

Volume for Material: 120L

Driving Device: Air Compressor/ Hydraulic Pump/ Engine

Hona Engine: 6.6KW/8.9HP

Amount for Spray Output: 2.5L/h

Machine Weight: 360kg

Appearance measurement: 1590x1000x1060mm

Sprayer machine PTJ-120 is the use of screw pump rotor spindle technology and gas with the arrangement of the machine, compact and reasonable equipment. This machine has the characteristics of fast discharge, large air pressure and full atomization, and its performance meets the spraying requirements of the surface of the sports ground, and achieves the ideal spraying effect.

Parameters:

Volume: 120L

Spray out amount: 12-15kg/min

Power: 10KW

Air pressure: 0.8MPa

Extractor capacity: 1m3/min

Net Weight: 480kg

Size:1820x1000x1500mm
