DESCRIPTION:

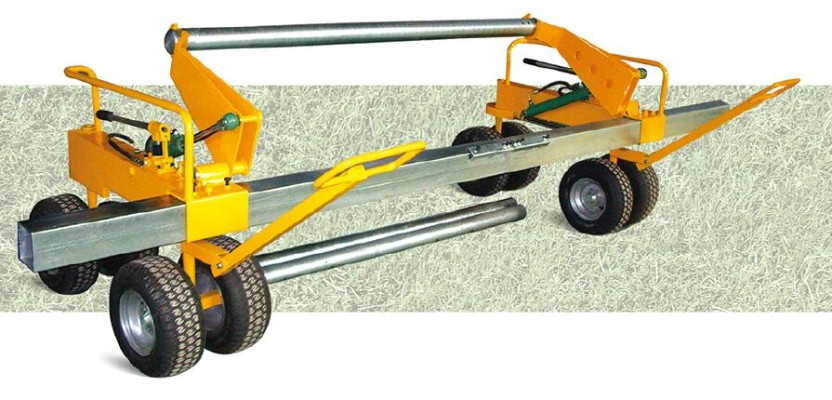

The machine is specialized cart in transport and installation for artificial turf, it allows the laying of artificial turf reels up to 5m width. The operation of machine consists of 2 carts to work together (direction changing, transportation, up and down). Each cart is provided with two steerable double tyres which can be turned synchronously via drawbar and tie bar; A square crossbeam connects both carts. 4 pairs of wheels take the total weight at the same time so as to ensure the minimum of surface pressure. Meanwhile, it can transport the turf very easily. Both carts are equipped with a hydraulically actuated lifting device a hand pump and hydraulic cylinder, which make it easily lifting and lowering of the artificial turf.

SPECIFICAITON:

Using width:  1-5m

Lifting height:  1200mm

Lifting power:   2000Kg

Machine weight:  250Kg

Appearance (L×W×H):  1300×100×1300mm
