DESCRIPTION:

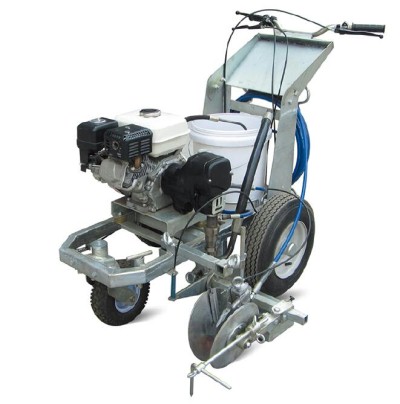

H-240 Line Marking Machine have compact structure and foldable galvanized anti-corrosion rack, new swing front wheel, any adjustment line width of the scraper plate. Three finger wide inflatable wheels can effectively reduce the machine vibration and keep the machine stable and smooth in the process of line marking: It is with strong Honda engine, new diaphragm pump, USA Graco brand original self-cleaning spray nozzle and accurate mechanical pressure control. Which make it can provide accurate spray paint in any case: In order to ensure the smooth and no burrs of spray paint. Two of their independent damping scraper plate can be close to the ground to scrape off the excess paint. The scraper plate can be adjusted in accordance with the width of the line to achieve your more satisfactory spraying effect.

SPECIFICATION:

Power: 2.2kw

Moving speed: 0.5-3km/h

Ordinary pressure: 12 Mpa

Max flow rate: 1.2L/min

Weight: 80kg

Size: 1500x550x750mm
